รายละเอียดย่อ :
ลำโพงเพดาน 6.5" Two-way surface speaker, 70/100V transformer with 16Ω bypass, 135° conical DMT coverage,includes C-ring and rails for blind mount installation. Available in black or white. Priced individually but must be purchased in pairs.
รายละเอียดทั้งหมด :
|

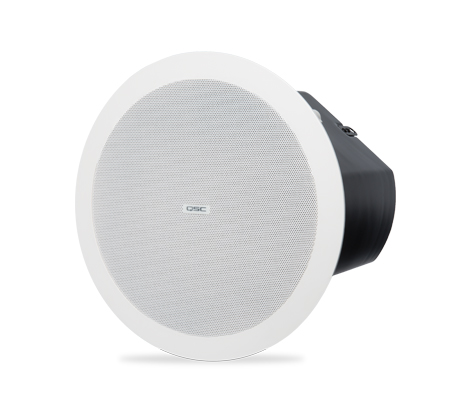

QSC AD-C6T ลำโพงเพดาน 6.5" Two-way surface speaker, 70/100V transformer with 16Ω bypass, 135° conical DMT
coverage,includes C-ring and rails for blind mount installation. Available in black or white. Priced individually but
must be purchased in pairs.
Feature.
- Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
- DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 3x double stepped, long travel dog-ear blind mount system
- Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms, including CXD amplifiers
- Low-saturation and low-loss 70/100V transformers with 16Ω bypass
- Blemish-free removable logo
- Removable conduit cover plate, also available as accessory for pre-install wiring
- UL1480 and UL2043 certified EN54-24 Type A (pending)
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, & BIM information available online
Datasheet
https://drive.google.com/file/d/11mHeoQ_xYPe-GjrtC_obJRmSpveAtmit/view?usp=sharing
|
SPECIFICATIONS
|
AD-C6T
|
|
Effective frequency range1
|
63 Hz – 20 kHz
|
|
Rated noise power / voltage2
|
60 watts / 31 volts (rms)
|
|
Sensitivity [dB]3
Sensitivity at 4m, 100V maximum tap
|
88
TBD
|
|
Rated coverage (-6 dB)4
Coverage angle by frequency
Conical coverage
|
140° conical DMT
500Hz 1000Hz 2000Hz 4000Hz
160° 160° 160° 170°
|
|
One-third octave frequency band contribution at full power using 100V maximum tap (Hz / dB)
|
500 / 57.4; 630 / 57.4; 800 / 57.4
1000 / 57.4; 1250 / 57.4; 1600 / 57.4
2000 / 57.4; 2500 / 57.4; 3150 / 57.4
4000 / 57.4
|
|
Directivity factor (Q)
|
6.5
|
|
Directivity index (DI) [dB]
|
8
|
|
Maximum continuous SPL [dB]5
|
106
|
|
Maximum peak SPL [dB]5
|
112
|
|
Nominal impedance [ohms]
|
16
|
|
Recommended amplifier
|
120 watts
|
|
Transformer taps / impedance
|
16Ω (in bypass setting)
7.5W (70V); 15W (100V) Tap: 667Ω
15W (70V); 30W (100V) Tap: 333Ω
30W (70V); 60W (100V) Tap: 167Ω
60W (70V); N/A (100V) Tap: 83Ω
|
|
LF transducer
|
165 mm [6.5 in] weather resistant paper cone woofer
|
|
HF transducer
|
25 mm [1 in] aluminum dome tweeter
|
|
Input connector type
|
Euroblock connector with parallel output
|
|
Enclosure material
|
ABS baffle on powder coated steel back can
|
|
Grille material
|
Powder coated steel
|
|
Ingress protection
|
IP-54
|
|
Operating environment
|
Designed for indoor use
|
|
Operating temperature range
|
-20 to 50° C [-4 to 122° F]
|
|
Cutout dimension
|
Ø 245 mm [Ø 9.65 in]
|
|
Net weight
|
4.3 kg [9.5 lb]
|
|
Product dimensions (Diameter x Height)
|
Ø 280 x 237 mm [Ø 11.02 x 9.32 in.]
|
|
Shipping weight
|
12.6 kg [27.8 lb] (pair packed)
|
|
Shipping dimensions (H x W x D)
|
330 x 737 x 381 mm [13 x 29 x 15 in] (pair packed)
|
|
Included accessories
|
C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille
|
|
Optional accessories
|
AD-MR6 (pre-install mud ring)
AD-CC6 (pre-install conduit cover)
|
|
Safety Agency
|
EN54-24: 2008 type A (No. pending)
UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems.
|
|
