QSC AD-S82

ad-s82
9,780.00 THB ต่อหน่วย Manufacturer: QSCQSC

รายละเอียดย่อ :
ตู้ลำโพงติดผนัง 8 นิ้ว, 2-Way 240 W System Weather Resistant Enclosure and Components
**สินค้าเลิกนำเข้า แนะนำ AD-S8T ครับ**

รายละเอียดทั้งหมด :


QSC AD-S82 & AD-S82H ตู้ลำโพงติดผนัง 8 นิ้ว, AcousticDesign™ Series


**สินค้าเลิกนำเข้า แนะนำ AD-S8T ครับ**

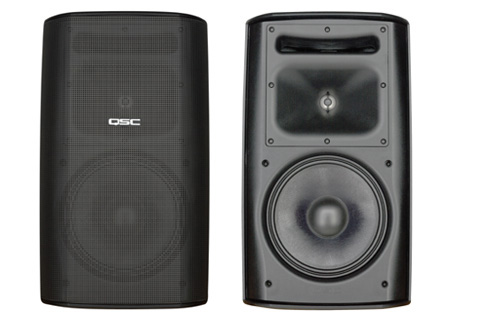

AcousticDesign AD-S82/AD-S82H


The QSC AcousticDesign AD-S82 is a full range, surface mount loudspeaker with sleek, contemporary styling that fits perfectly into multiple environments and applications including hotels, restaurants, convention facilities, and multimedia environments. The speaker incorporates QSC's revolutionary IntelliDock™ intelligent mounting system (patent pending) combined with the Advanced Directivity™ rotatable waveguide. Available in black or white, these great sounding, weather resistant enclosures can be painted to match any specific decor.

With both high output and standard versions, the AD-S82 is a 2-way system housed in a ported enclosure made from injection molded, high impact polystyrene. This enclosure incorporates an 8" weatherproof, LF transducer with a heavy-duty double roll cloth surround. High output versions employ a 1" exit compression HF driver while standard versions provide a 1" pure titanium dome tweeter. Both versions are available with or without a transformer (70V/100V transformer is included in the optional ID-8T IntelliDock mounting system). The HF driver is coupled with QSC's unique Advanced Directivity rotatable waveguide - enabling the loudspeaker to deliver accurately focused sound, regardless of its mounted orientation.

IntelliDock Mounting SystemQSC's new IntelliDock intelligent mounting system raises the bar for contractor speaker ease of installation and security. The IntelliDock docking station combines all the components needed to mount, wire, and position the speaker into a single housing - independent from the enclosure. The speaker enclosure locks onto the docking station in one step, simultaneously making electrical connections and holding the speaker in place. This exceptional design carries the added benefit of security - reducing the possibility of theft. When opening night arrives, snap the enclosures into the docking stations and feed the program material. A total of three mounting configurations are available - including a standard yoke mount.

FEATURES

  • Contemporary Style, Weather Resistant Enclosure and Components - Ideal for a wide range of applications.
  • 8-Inch, 2-Way System - in a lightweight, multipurpose enclosure featuring a heavy duty, powder coated aluminum grill.
  • IntelliDock™ Intelligent Mounting System - consists of a mounting plate and detachable docking station that incorporates termination points for wiring. Benefits include installation ease and reduced chance of enclosure theft. The ID-8T IntelliDock contains a 70V/100V transformer.
  • Advanced Directivity™ Rotatable Waveguide -(60° x 90°) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosure's mounted orientation.
  • High and Standard Power Versions - Power handling capabilities suitable for a multitude of environments, with built-in dynamic power protection during overload conditions.



SPECIFICATIONS
AD-S82H (high output) AD-S82
Configuration Compact two way, ported enclosure Compact two way, ported enclosure
Transducers
  Low Frequency Transducer

  High Frequency Transducer

8" high power treated paper cone, 2" voice coil, neodymium magnet
1" high output compression driver

8" fiberglass cone, 1 1/4" voice coil

1" titanium dome tweeter with neodymium magnet
Frequency Range 1
  Frequency Response (±3 dB)
  Useable Frequency Range (-10 dB)

80 Hz - 21 kHz
60 Hz - 22 kHz

85 Hz - 18 kHz
65 Hz - 19 kHz
Maximum Output 2
  Continuous
  Peak


114 dB SPL
120 dB SPL


111 dB SPL
117 dB SPL
Nominal Impedance 8 ohms (7 ohms minimum, 135 ohms maximum) 8 ohms (5.4 ohms minimum, 50 ohms maximum)
Power Capacity 3 240 W (IEC, 8 hours)
200 W (IEC, 100 hours)

110 W (IEC, 8 hours)
90 W (IEC, 100 hours)
Recommended Max Amp Power 400 W RMS 180 W RMS
Power Limiting Dynamic, full range power protection circuitry activated by signal overload conditions Dynamic, full range power protection circuitry activated by signal overload conditions
Sensitivity 4 90.5 dB, 1 m, free field (4pi) 90.5 dB, 1 m, free field (4pi)
Nominal Coverage 90° H x 60° V (-6 dB)
(rotatable to 60° H x 90° V)
90° H x 60° V (-6 dB)
(rotatable to 60° H x 90° V)
Bass Loading Ported, tuned to 65 Hz Ported, tuned to 65 Hz
Transformers (available with the optional ID-8T IntelliDock mounting system)
Type Custom low distortion laminated
core, wide bandwidth design
Custom low distortion laminated
core, wide bandwidth design
Taps 70V 60, 30, 15, 7.5 Watts
100V 60, 30, 15 Watts
70V 60, 30, 15, 7.5 Watts
100V 60, 30, 15 Watts
Enclosure
Material Injection molded, weather resistant,
high impact polystyrene
Finish White or black (paintable)
Weather Resistance Yes
Grill Heavy duty powder coated aluminum
Connectors Pair of concealed 5-way binding posts,
in conjunction with IntelliDock mounting/connection system
Mounting Hardware AcousticDesign IntelliDock or Yoke Mount options
Weight 16.9 lbs (7.7 kg) net
20.3 lbs (9.2 kg) shipping
16.2 lbs (7.4 kg) net
19.6 lbs (8.9 kg) shipping


1 All frequency ranges specified refer to measured free field response (full space, 4pi)
2 Calculated using specified power capacity and system sensitivity. 6 dB peak-to-average signal ratio assumed.
3 Continuous IEC specified test signal
4 Based on nominal impedance, measured in full-space.

Specifications subject to change without notice.
