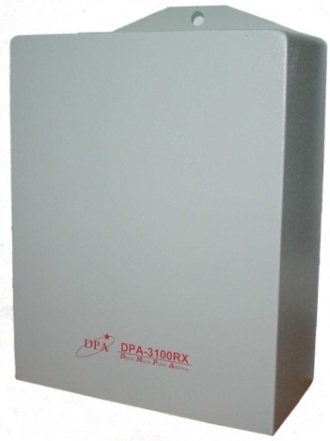

DPA-3100RX DPA Receiver, 100 Watts Output with Outdoor Box
(สินค้าตกรุ่น) แนะนำเป็นรุ่น DPA-3100RXL แทนค่ะ
DPA-3100RX เครื่องรับสัญญาณและขยายเสียง 100 วัตต์ 8 โอห์ม

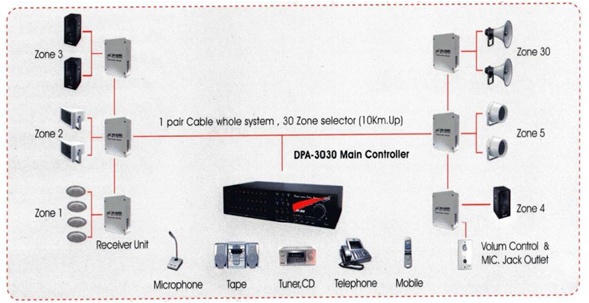

ความหมายระบบ DPA
DPA (Digital Sound Matrix Public Address System) คือ ระบบกระจายเสียงตามสายดิจิตอลได้รับการพัฒนามาจากระบบอนาลอก
โดยสัญญาณเสียงมีคุณภาพดีกว่า และระยะทางในการส่งสัญญาณเสียงไกลกว่าระบบอนาลอก
คุณสมบัติทางด้านเทคนิค
หัวข้อ
คุณสมบัติ
Audio output DPA-3100RX
100 W
Bass boost/cut
+ 8 dB @ 100 Hz
Treble boost/cut
Frequency response
50 Hz – 20 kHz, 3 dB.
Distortion at rate output
< 0.5 %
Signal to noise ratio
> 80 dB
LED status display
Yes
Main supply
AC 220 -230 V / 50 Hz (in/out)
Power consumption
110 VA
Operating temperature range
-10 Cº ~ +50 Cº
Storage temperature range
-40 Cº ~ +70 Cº
Relative humidity range
< 95%
Dimension H x W x D (mm)
250 x 315 x 120 mm.
Weight (Approx)
6 kg.
DPA-3100RX Data Sheet (Specification) PDF Download
