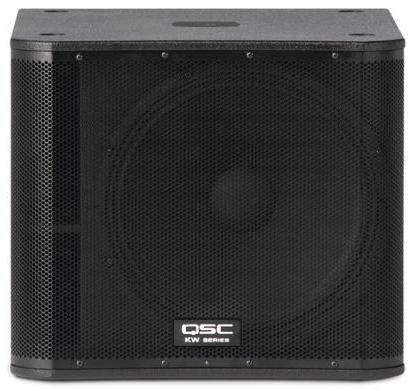

QSC KW181

kw181
74,000.00 THB ต่อหน่วย Manufacturer: QSCQSC

รายละเอียดย่อ :
ลำโพงซับ 18" subwoofer 1000 watt

รายละเอียดทั้งหมด :




QSC KW181 ลำโพงซับ 18" subwoofer 1000 watt



Features

  • K Series performance in a lightweight, birch design
  • 1000 watt Class D power modules in all models (2 x 500 W continuous)
  • Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance
  • DMT™ (Directivity Matched Transition) ensures uniform coverage across the entire sound field
  • Rugged, texture-painted birch enclosures
  • Four-position Mic/Line gain (full-range models)
  • Tour-grade 16 gauge steel grilles
  • Comfortable ergonomic handles
  • 35 mm pole sockets with Tilt-Direct™ on KW122 and KW152, standard (non-tilt) pole socket on KW153
  • M10 rigging points for suspended installation (full-range models)
  • KW122 also functions as stage monitor



Specifications

KW Series

KW181
SPECIFICATIONS KW181
Configuration 18" subwoofer
Transducer 18" cone transducer
Frequency Response (-6 dB) 38 Hz - 124 Hz
Frequency Range (-10 dB) 34 Hz - 143 Hz
Maximum SPL1 135 dB peak
Amplifiers
Power Output2 1000 W Class D continuous
2000 W peak
Input Impedance (ohms) XLR / ¼": 38k balanced / 19k unbalanced
Controls Power, Gain, LF Mode (Normal/DEEP™), Polarity (Normal/Reverse), Front LED (On/Off/Limit)
Indicators Power, Signal, Standby, Limit
Connectors Dual balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out, Remote gain control, Locking IEC power connector
Cooling On demand, 50 mm variable speed fan
Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection Thermal limiting, excursion limiting
AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption
(1/8 Power)
100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A
Enclosure
Material 15 mm painted birch plywood
Finish Black textured paint
Grille Rugged Powder-Coated Steel Grille
Dimensions (HWD) 20.1" x 23.4" x 29.9" with casters
510 mm x 595 mm x 761 mm with casters
Weight (Net) 88 lb (40 kg)
Available Accessories KW181 COVER
