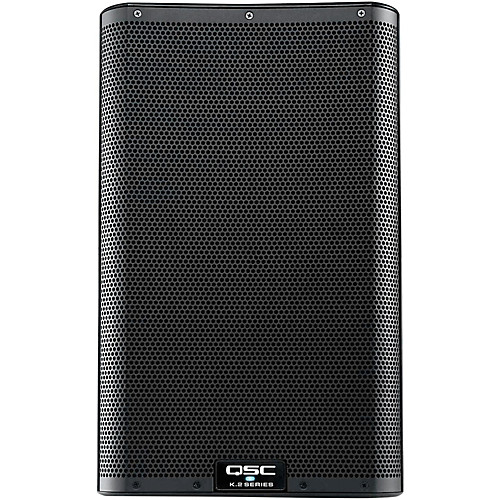

QSC K10.2

k10_2
41,000.00 THB ต่อหน่วย Manufacturer: QSCQSC

รายละเอียดย่อ :
Active 10" Loudspeaker 2,000W Powered 10 in. 2-way Loudspeaker System with Advanced DSP

รายละเอียดทั้งหมด :




QSC K10.2 Active 10" Loudspeaker 2,000W Powered 10 in. 2-way Loudspeaker System with Advanced DSP

The QSC K.2 Series represents the best-inclass loudspeaker for today’s demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.

Features




  • Best in class audio performance
  • 2000 Watt Class-D amplifier module
  • Intrinsic Correction™ tuning and  loudspeaker management
  • DMT™ (Directivity Matched Transition)  design provides excellent power response and consistent performance across the listening are
  • Refined, professional appearance looks great in any application
  • Rugged ABS enclosure for long life and lasting durability
  • Deployment in either main PA or floor monitor position

  • Factory Presets and savable/recallable Scenes for commonly-used application
  • Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
  • Dual pole cup mounts (standard and 7.5 degree down-tilt)
  • M10 fittings for flown applications
  • Optional security panel prevents  unauthorized tampering of controls
  • Complete EASE and CAD information  available online
  • 6-Year Warranty (with product registration)
Model K10.2
Configuration Multi-purpose, 2-way powered loudspeaker
LF Transducer 10" (254 mm), cone
HF Transducer 1.4" (35.6 mm) titanium diaphragm compression driver
Frequency Response (-6 dB) 56 Hz - 20 kHz
Frequency Range (-10 dB) 50 Hz - 20 kHz
Nominal Coverage Angle 90° Axisymetric
Maximum Rated SPL1

Amplifier

Cooling
130 dB @1 M, peak 124 dB @ 1 M, continuous

Class D
Peak: 1800 W (LF), 225 W (HF)

Low-noise, variable speed fan
Controls Power
3 x Level
Rotary encoder (push)
2 x selection buttons
Indicators Monochrome LCD Display 1.75" x 1" (45 mm x 25.4 mm)
2 x Power LED (front and rear)
3 x Input Signal LED
Input A Mic selected LED
Input B Hi-Z selected LED
Limiter active LED
Connectors 2 x locking XLR/F ¼" combo (Mic/Line Input and Hi-Z/Line Input
1 x 3.5 mm TRS (Stereo Input)
2 x XLR/M (Loop-thru Output)
1 x XLR/M (Mix Output)
1 x locking IEC power connector
AC Power Input Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power2 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
AC Power Consumption - Standby .2A at any voltage
Enclosure Details
Enclosure Enclosure Impact Resistant ABS
Attachment Points 2 x M10 threaded inserts plus Pull-Back
Color Black (RAL 9011)
Grille 18 Gauge powered coated steel, internal cloth lining
Dimensions (HxWxD) 20.4 x 12.6 x 11.8 in

519 x 320 x 300 mm
Net Weight 14.5 kg (32 lbs)
Shipping Weight 17.6 kg (38.8 lbs)
Regulatory CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Optional Accessories K10 Tote, K10 Outdoor Cover
M10 Kit-C, K.2-LOC Lock Out Cove
K10.2 Yoke
