TOA SR-A12LWP

toa_sr-a12lwp
203,390.00 THB ต่อหน่วย Manufacturer: TOATOA

รายละเอียดย่อ :

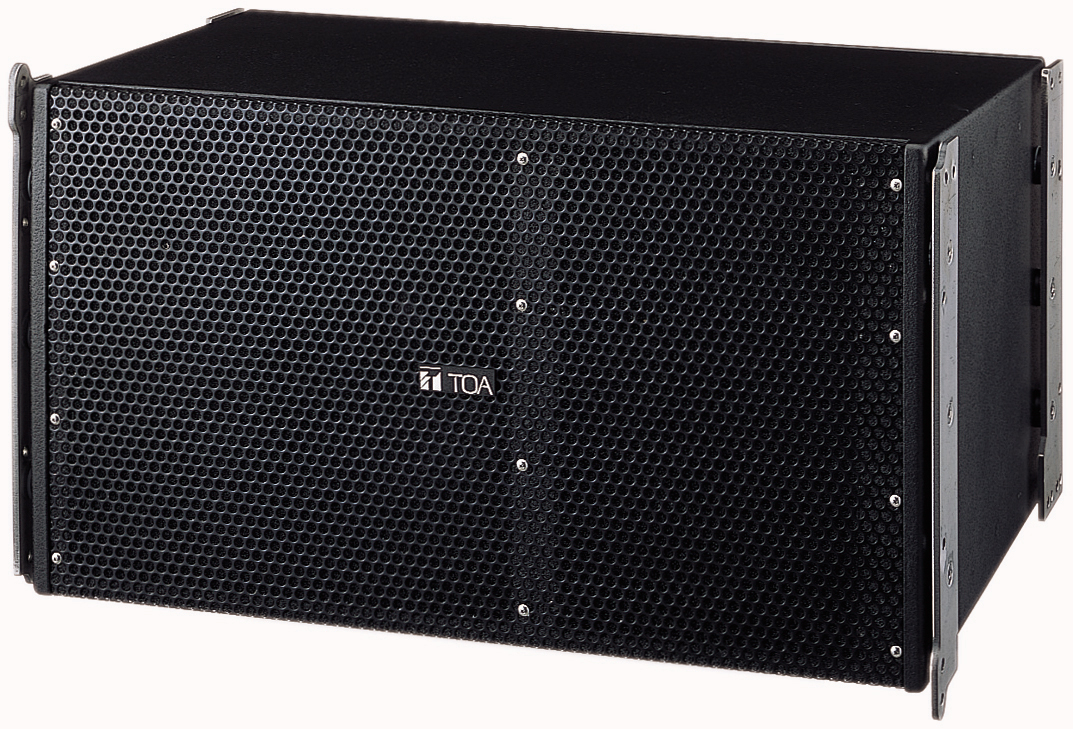

TOA SR-A12LWP 2-Way Line Array Speaker System

รายละเอียดทั้งหมด :



TOA SR-A12LWP 2-Way Line Array Speaker System



SR-A12LWP 2-Way Line Array Speaker System

SR-A12LWP

SR-A12LWP

Featuring the line arrayed wave front control technology that creates sound fields with uniform sound pressure and high sound clarity, the SR-A12LWP is a two-way line array speaker ideal for long distance sound transmission. It satisfies the water-protection requirements set down in the IPX4 Standard. The SR-A12LWP employs the multi-amplifier drive system and is designed to be used in conjunction with the optional DP-0206 Digital Processor, D-901 Digital Mixer or D-2000 Digital Mixing System.


Specification
Enclosure Bass-reflex type
Power Handling Capacity Continuous program Low frequency: 450 W, High frequency: 180 W
Rated Impedance Low frequency: 8 Ω, High frequency: 16 Ω
Sensitivity Low frequency: 98 dB (1 W, 1 m), High frequency: 110 dB (1 W, 1m)
Frequency Response 50 - 20,000 Hz (when using DP-0206* (option))
Crossover Frequency 1,000 Hz (when using DP-0206* (option))
Directivity Angle Horizontal: 90゜, Vertical: 5゜
Speaker Component Low frequency: 30 cm cone-type
High frequency: Wave front control horn 90゜ (horizontal) × 5゜ (vertical)
+ compression driver × 2
Connected Cable Direct cable withdrawal from internal speaker: φ8.6 mm,
conductor cross section: 1.25 m㎡, 4-core cable, 3 m
Operating Temperature -10℃ to +50℃
Water Protection IPX4
Finish Enclosure: Plywood, black, urethane coating
Front grille: Punched stainless steel (SUS304), black, paint
Dimensions 740 (W) × 433 (H) × 469 (D) mm (excluding connected cable)
Weight 51 kg (including accessories)
Accessory Joint plate …2, Joint plate mounting bolt (M10) …16
Option Rigging frame:SR-RF12WP
Digital processor: DP-0206*
Digital Mixer: D-901
Digital Mixing Processor Unit: D-2008SP
