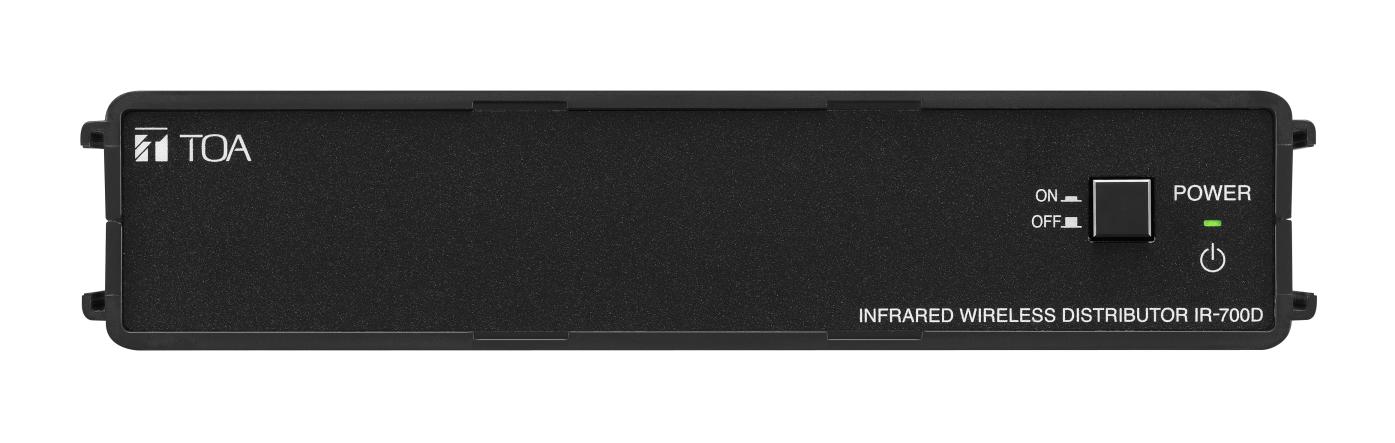

TOA IR-700D

ir-700d
8,540.00 THB ต่อหน่วย Manufacturer: TOATOA

รายละเอียดย่อ :
เครื่องรวมและแยกสัญญาณอินฟาเรด สำหรับเครื่องรับไมโครโฟนไร้สาย แบบอินฟาเรด is a receiver distributor for 4 receiver mixing inputs and 2 distribution outputs.

รายละเอียดทั้งหมด :

TOA IR-700D เครื่องรวมและแยกสัญญาณอินฟาเรด สำหรับเครื่องรับไมโครโฟนไร้สาย แบบอินฟาเรด is a receiver distributor for 4 receiver mixing inputs and 2 distribution outputs.



The IR-700D is a receiver distributor used in the TOA's infrared wireless microphone system. It employs 4 receiver mixing inputs and 2 distribution outputs. By using the IR-700D in conjunction with the IR-702T Infrared Wireless Tuner, up to 16 infrared wireless receivers can be connected to the IR-702T.



Specification



Power Source AC mains, 50/60 Hz (supplied from the included AC adapter)
Power Consumption 25 W or less
Input/Output 4 mixing inputs, 2 distribution outputs
Band-Pass Frequency 3.0 - 6.0 MHz
Gain 0 dB (±3 dB)
Infrared Receiver Input 75 Ω, BNC jack × 4 (Infrared wireless receiver's power source: 24 V DC,
800 mA max. in total of 4 terminals)
Distribution Output 75 Ω, BNC jack
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity 30 % to 85 %RH
Finish Case: ABS resin, black
Dimensions 210 (W) × 44 (H) × 200.9 (D) mm (8.27 × 1.73" × 7.91")"
Weight 640 g (1.41 lb) (unit only)
Accessory AC adapter (DC cord length: 1.8 m (5.91 ft))* …1,
AC Power cord (2 m (6.56 ft)) …1,
BNC plug-to-BNC plug cord (50 cm (1.64 ft)) …1, Rubber foot …4
Option Rack mounting bracket: MB-WT3
MB-WT4 (for mounting with the optional IR-702T
together)
