REMOTE MICROPHONE EXTENSION
รายละเอียดทั้งหมด :

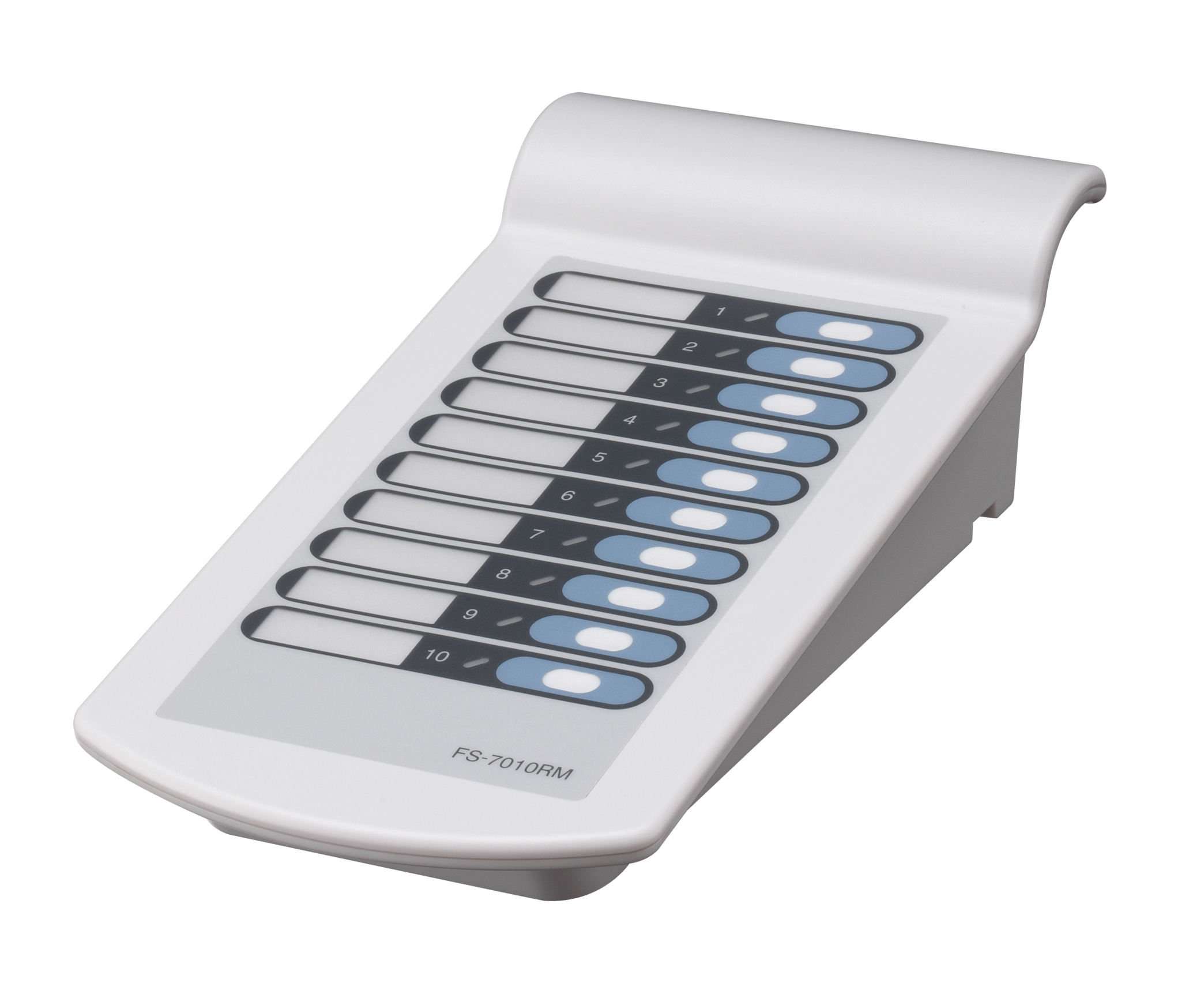

TOA FS-7010RM REMOTE MICROPHONE EXTENSION
FS-7010RM Remote Microphone Expansion
FS-7010RM
The FS-7010RM Remote Microphone Expansion Unit is used to expand the FS-7000RM general- purpose microphone in the FS-7000 Series Voice Evacuation System. Up to 10 lines are expandable per FS-7010RM.
- * 0 dB = 1 V
| Power Source |
Supplied from the FS-7000RM |
| Current Consumption |
15 mA (increment in FS-7000RM's current consumption) |
| Operating Section |
Zone selection keys |
| Display Section |
Zone indicators |
| Operating Temperature |
0℃ to +40℃ |
| Operating Humidity |
Under 90% RH (no condensation) |
| Finish |
ABS resin, blueish gray |
| Dimensions |
110 (W) × 76.5 (H) × 215 (D) mm |
| Weight |
350 g |
| Accessory |
Connection cable (8 pins, 8 cm) …1, Linkage bracket A …2,
Linkage bracket B …1, Screw for linkage bracket …12 |
|
