TOA AM-1B

am-1b
129,000.00 THB ต่อหน่วย

รายละเอียดย่อ :
Real-time Steering Array Microphone

รายละเอียดทั้งหมด :

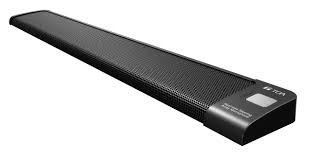

TOA AM-1B Real-time Steering Array Microphone

The AM-1B is a high sound quality microphone system that features automatic adjustment capability in a slim configuration. Composed of an array microphone connected to a separate control unit, it is ideal for installations and use on lecterns. The array microphone unit's eight internal microphones detect and track the location of the sound source, picking up audio clearly and without interruption, allowing speakers to conduct presentations more naturally without worrying about the location of the microphone. In addition, setup of operation can be performed Rusing an iPad or PC browser. The control unit can be mounted in an EIA Standard rack with the use of optional rack-mounting brackets. (1-unit size)

Specification
Product Composition Array microphone …1, Control unit …1
Array Microphone
Power Source 24 V DC (supplied from the Control unit)
Microphone Unidirectional electret condenser microphone
Directivity Angle Horizontal: 50゜ (800 Hz - 18 kHz, Array mode), 180゜ (Cardioid mode), Vertical: 90゜
Frequency Response 150 Hz - 18 kHz
Maximum Input Sound Pressure 100 dB SPL
Operation Mute switch
Indicator Microphone status indicator (output: green, mute: red)
Microphone Cable Shielded twisted pair cable 10 m (32.81 ft) with connector equivalent to TA-3
Maximum Cable Distance 70 m (229.66 ft) (use of the AES/EBU cable)
Finish Body, Punched net: Surface-treated steel plate, black, 30%%% gloss
Side cover: ABS resin, black
Dimensions 483.9 (W) x 22.1 (H) x 64.9 (D) mm (19.05" x 0.87" x 2.56") (excluding Cable)
Weight 1.2 kg (2.65 lb)
Control Unit
Power Source 24 V DC (supplied from the AC adapter (option))
"Usable DC power supply plug: 5.5 mm (0.22) outer diameter
Current Consumption 410 mA or less
Signal to Noise Ratio 90 dB or more
Input Combined type of TA-3 (dedicated to the array microphone)
Output Combined type of XLR-3-32, Removable terminal block (3 pins)
Network Network I/F: 10BASE-T/100BASE-TX, RJ45 connector
Network protocol: TCP/IP, HTTP
Level Control Output level selection (+4 dB (*1), -10 dB (*2), -50 dB (*1))
LOW CUT ON/OFF"
Operation Power switch
Indicators Power indicator (blue), Mute indicator (red), Signal indicator (green)
Finish Pre-coated steel plate, black, 30 % gloss
Dimensions 210 (W) x 45.7 (H) x 271.5 (D) mm (8.27" x 1.8" x 10.69")
Weight 1.5 kg (3.31 lb)
Dedicated Software iPad app, PC browser software
(for setting of tracking distance/range, sensitivity/speed, mute ON/OFF)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH (no condensation)
Accessory Removable terminal plug (3 pins) …1
Option AC adapter: AD-246
Rack mounting bracket: MB-15B-BK (for rack mounting one control unit), MB-15B-J (for rack mounting two control units), Wall mounting bracket: YC-850 (for one control unit)
(*1) 0 dB = 0.775 V



(*2) 0 dB = 1 V
